This guide will step you through setting up an Internode email account in Microsoft Office Outlook 2010.

Step 1

• Open Microsoft Outlook 2010.
• NOTE: If this is the first time you have used Outlook 2010, you will be presented with a setup wizard. if so, skip to Step 5.

Step 2

• Click on the File tab at the top left of the screen.

Step 3

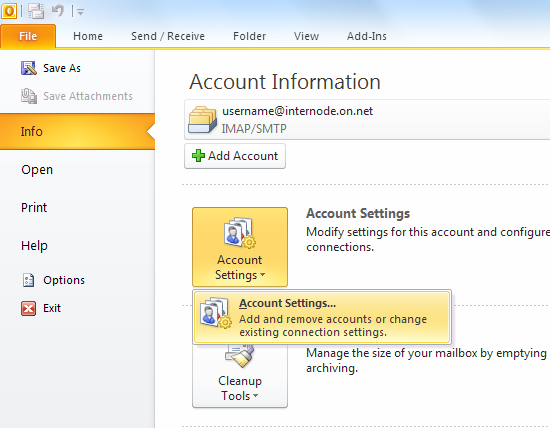

• The File screen will open. Click on Info in the left column.
• Click the Account Settings button and select Account Settings…

Step 4

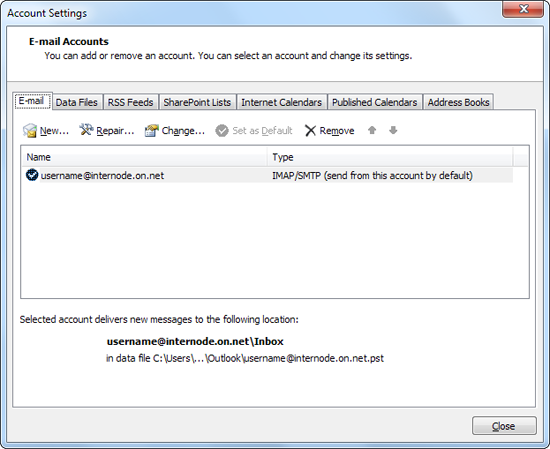

• The Account Settings window will appear. Click the New… button to start the Add New Account wizard.

Step 5

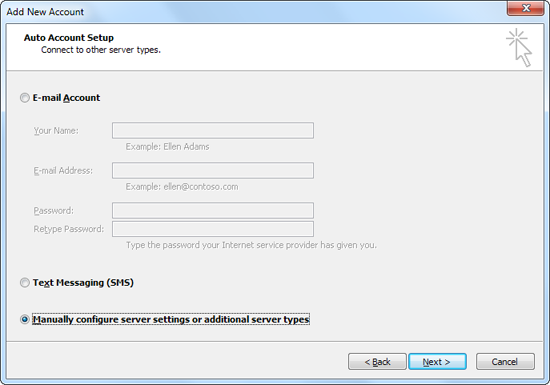

• Select Manually configure server settings or additional server types from the list.
• Click Next to continue the wizard.

Step 6

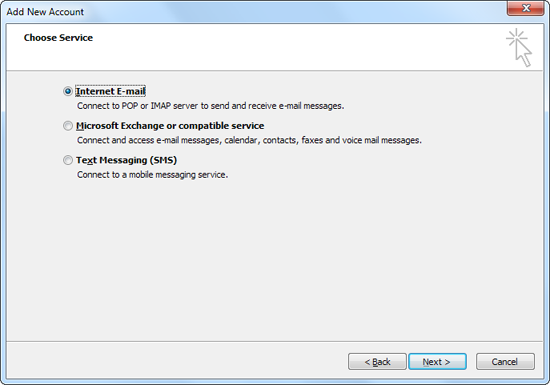

• Select Internet E-mail from the list, and click Next.

Step 7

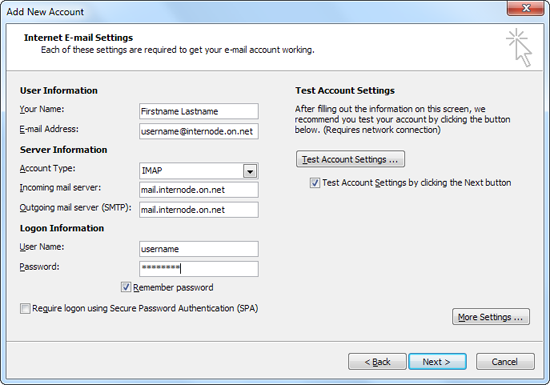

• In the Your Name field, enter your given name or business name—this is how your name appears when people receive email from you.
• In the E-mail Address field, enter your Internode email address, e.g., username@internode.on.net
• Select IMAP as the Account Type
• In the Incoming Mail Server field, type mail.internode.on.net
• In the Outgoing Mail Server (SMTP) field, type mail.internode.on.net
• In the User Name field, type your Internode username. Do not include @internode.on.net.
• In the Password field, enter your Internode password.

Step 8

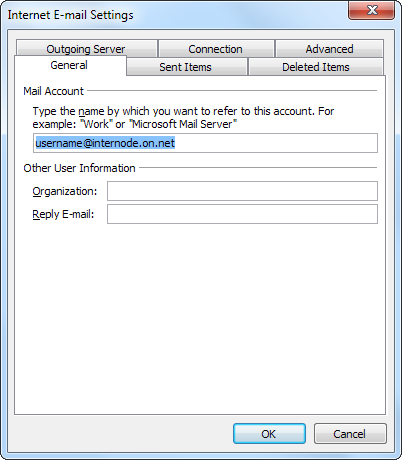

• Click the More Settings… button. The Internet E-mail Settings window will open.

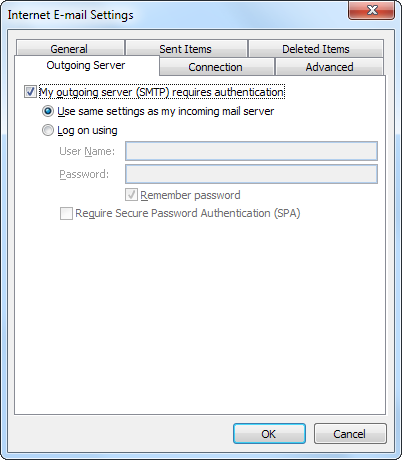

• Click the Outgoing Server tab at the top of the window.

Step 9

• Click the checkbox next to My outgoing server (SMTP) requires authentication.
• Ensure Use same settings as my incoming mail server is selected.

Step 10

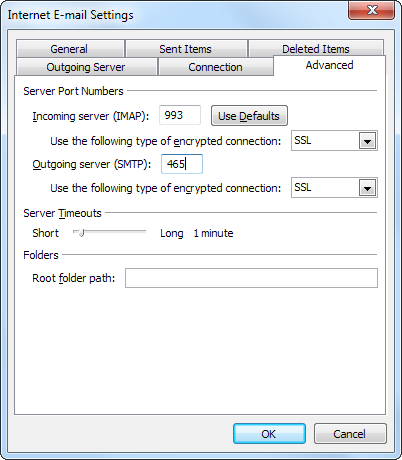

• Click the Advanced tab at the top of the screen.
• Underneath Incoming server (IMAP) set Use the following type of encrypted connection to SSL.
• Underneath Outgoing server (SMTP) set Use the following type of encrypted connection to SSL.
• Next to Outgoing server (SMTP) change the number from 25 to 465.
• Next to Incoming server (IMAP) check that the number is 993.
• Click OK to return to the wizard.

Step 11

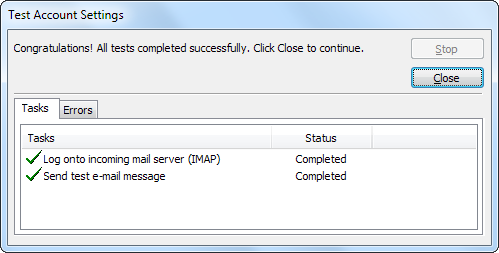

• Click Next to complete the wizard. Outlook will begin a test.
• If all your settings are correct, Outlook will advise you that all the tests completed successfully. Click Close to finish the wizard.

Step 12

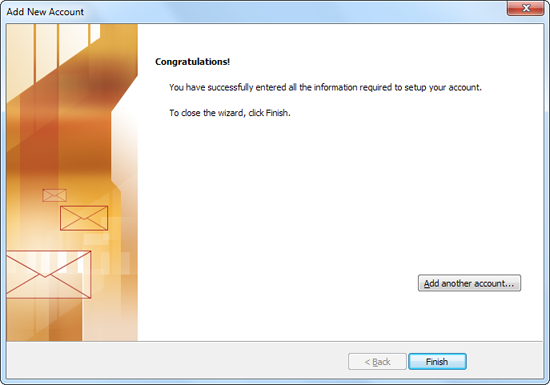

• Click on the Finish button to complete the Add New Account wizard.

Congratulations! Microsoft Outlook 2010 is now configured for use.

If you are having trouble setting up the email account or would like to clarify some of the steps, please contact the helpdesk.
