Connect to the FRITZ!Box web-based interface

Step 1

• Open your preferred web browser, e.g., Internet Explorer, Mozilla Firefox, etc.
• Enter the following number into the address bar and then hit Enteron your keyboard:
  • 192.168.178.1 (this is known as an IP Address)

Figure 1: Entering the IP address to access the router

Step 2

• The modem Log In page will open. You will be prompted for a password.
• Enter admin in the password field, then click Log On to continue.

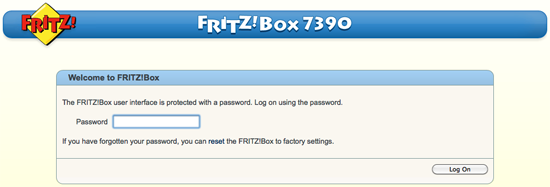

Figure 2: The FRITZ!Box Login Screen

Setting up Fetch TV on the NBN

Step 1

• Log in to the router as per the instructions above.
• Select Wizards from the menu to the left of the screen.
• Select Check Internet Connection to begin the Internet set-up wizard.

Figure 3: The FRITZ!Box wizards menu

Step 2

• You will be asked to select your Internet Service Provider.
• Select other Internet Service Provider from the drop down menu.
  NOTE: This is unnecessary for ADSL connections: select Internode instead.
• Click Next to continue the wizard.

Figure 4: Selecting your ISP

Step 3

• You will be asked for your Internode connection details.
• Enter your Internode username into the User name field, e.g., username@internode.on.net.
  NOTE: If your username does not include @internode.on.net you will be unable to connect.
• Enter your Internode password into the Password and Password confirmation fields.
  (Lost your password? Click here!)
• Click Next to continue.

Figure 5: Entering your Internode connection details

Step 4

• The wizard will ask you to confirm your settings.
  • If all the settings are correct, press Next to continue.
  • If the settings are not correct, press Back to make any necessary corrections.

Figure 6: Confirming settings

• The FRITZ!Box will check your settings and establish an Internet connection. It will say The procedure was concluded successfully if this was successful, and then it will return to the Wizards menu.

Figure 7: Successful test completion

Congratulations! You have successfully configured your FRITZ!Box for Fetch TV on the NBN.

Further Assistance

If you're looking to also set up your NodePhone or Wireless service for your FRITZ!Box router, please refer to our other guides:

• NodePhone Configuration for FRITZ!Box Routers
• Wireless Configuration for FRITZ!Box Routers

If you are having trouble setting up your router or would like to clarify some of the steps, please contact our Support Team.
