Fetch TV Configuration for NetComm NB604N Routers
This guide is suitable for NetComm Wireless NB604N routers.
What we'll cover:
- logging into your router
- turning your router's Fetch TV settings on (or off)
Not what you're looking for? Try the NetComm NB604N ADSL guide, Netcomm IPv6 guide, or the NetComm NB604N Wireless guide
Logging into your NetComm Wireless NB604N
Step 1
- Ensure that your computer is connected to your NetComm Wireless NB604N with an Ethernet cable or wireless connection.
- Open your preferred web browser, e.g., Internet Explorer, Mozilla Firefox, etc.
- Enter the following number into the address bar and then hit Enteron your keyboard:
- 192.168.1.1 (this is known as an IP Address)
 |
|---|
|
Figure 1: Entering the IP address to access the router |
Step 2
- The modem Log In page will open. You will be prompted for a username and password.
| Username: | admin |
|---|---|
| Password: | admin |
| This is the router's default username and password. We recommend that you change the password for security reasons. |
|
- Click OK to log in to the router.
Configuring your Fetch TV Connection for ADSL
This guide is only suitable for Netcomm NB604N routers on ADSL services. If you are using Fibre To The Home please follow the Fetch TV for Fibre To The Home guide.
Step 1
- Log in to the router as per the instructions above.
- Click Advanced Setup on the left menu
- Click Layer 2 Interface from the drop down menu
- Click ATM Interface
- If your screen contains two rows like the below image, skip to Step 3
- If there is only one row present, click Add
 |
|---|
|

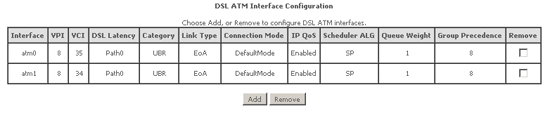

Figure 2: The NetComm NB604N Interface Menu |
Step 2
- Set the VPI to 8 and VCI to 34
- Ensure the DSL Link Type is set to EoA
- Click Apply/Save
 |
|---|
|
Figure 3: The NetComm NB604N Interface Configuration Screen |
Step 3
- Click WAN Service from the left menu
- If your screen contains two rows like the below image then your Netcomm NB604N may already be configured for Fetch TV.
- If there is only one row present, click Add
 |
|---|
|

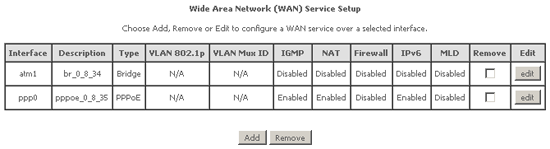

Figure 4: The NetComm NB604N WAN Setup page |
Step 4
- Select atm1/(0_8_34) and press Next
 |
|---|
|
Figure 5: The NetComm NB604N |
- Choose Bridging and press Next
 |
|---|
|
Figure 6: The NetComm NB604N |
- Click Apply/Save on the WAN Setup - Summary page
Congratulations! You have successfully configured the Fetch TV settings on your NetComm NB604N router.
Configuring your Fetch TV Connection for Fibre To The Home
This guide is only suitable for Netcomm NB604N routers on Fibre To The Home services. If you are using ADSL please follow the Fetch TV for ADSL guide.
Step 1
- Log in to the router as per the instructions above.
- Click Advanced Setup from the menu to the left of the screen.
- Click WAN Service from Advanced Setup menu.
- The WAN Service Setup page will now be displayed.
- Click edit on the interface titled ppp0.
 |
|---|
|
Figure 7: The NetComm Wireless NB604N WAN Setup page |
Step 2
- The PPP Setup page will now be displayed.
- Ensure that Enable IGMP Multicast Proxy is checked.
- Click the Next button.
- The WAN Setup - Summary page will now be displayed.
- To save your network settings, click the Apply/Save button after confirming the settings in the summary are correct.
Congratulations! You have successfully configured the Fetch TV settings on your NetComm NB604N router.
Further Assistance
If you're looking to also set up another service on your NetComm NB604N router, please refer to our other guides:
- ADSL Configuration for NetComm Wireless NB604N Routers
- Wireless Configuration for NetComm Wireless NB604N Routers
- IPv6 configuration guide for NetComm Wireless NB604N Routers
If you are having trouble setting up your router or would like to clarify some of the steps, please contact our Support Team.
