Email configuration for Android (HTC)
This guide is suitable for Android (HTC) phones such as the Desire HD, or the HTC One X. Please note that Samsung Android phones have a different user interface.
What we'll cover:
- Configuring an Internode email account on an Android (HTC) phone
Not what you're looking for? Try the Samsung Android guide, the iPhone guide or the Windows Phone 7 guide.
While email setup is generally standardised across most Android phones, because Android is open-source software, the Mail client on your Android phone may appear completely different to the one shown in this guide.
This guide has been tested on the following Android phones:
- Desire HD (Android 2.3.5 Gingerbread)
- HTC One X (Android 4.0.3 Ice Cream Sandwich)
Configuring an Internode email account on an Android phone
Step 1
- Open the Mail application.
- If this is the first time you have used your Mail application, you will be presented with an email setup wizard.
- If this is not the first time you have used your Mail application, select Menu then Add Account to start the wizard.
- The "Choose a mail provider" screen will appear. Select Other (POP3/IMAP) from the list.
NOTE:You can also get to this screen by going to your phone's Settings, then Accounts & Sync then Add, and finally Mail.
![]() |

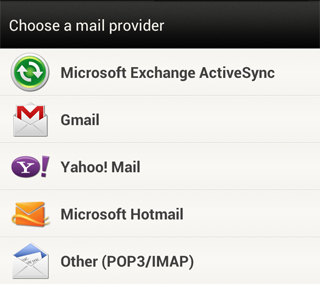

Figure 1: An example 'Choose a mail provider' screen |
Step 2
- You will be prompted for your Internode email account details.
- In the Email Address field, enter your Internode email address, for example: [email protected].
- In the Password field, enter your Internode password.
- Click Next once you have entered your details.
![]() |

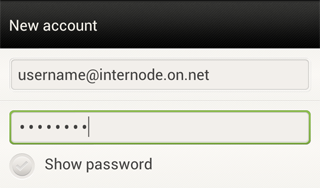

Figure 2: An example 'New account' screen |
Step 3
- The Incoming Settings page will appear.
- Set the Protocol to IMAP.
- Double-check your Email Address.
- Ensure your Username does not include @internode.on.net.
- Set the IMAP server to mail.internode.on.net.
- Set the Security type to SSL.
- Make sure the Server Port is 993.
- Once the settings are correct, click Next.
![]() |

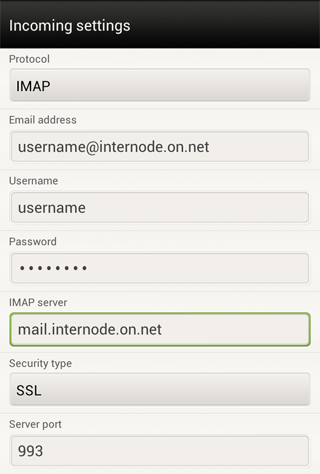

Figure 3: Incoming settings for Internode email |
Step 4
- The Outgoing server settings page will appear.
- Make sure that Login required is selected.
- Ensure your Username does not include @internode.on.net.
- Set the SMTP server to mail.internode.on.net.
- Set the Security type to SSL.
- Make sure the Server port is 465.
- Once the settings are correct, click Next.
![]() |

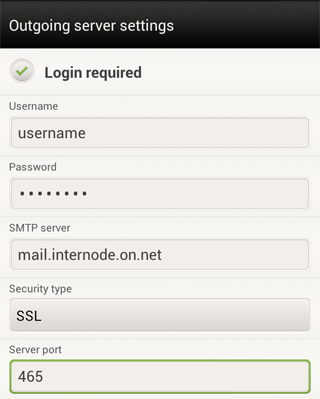

Figure 4: Outgoing settings for Internode email |
Step 5
- Set an Account Name for your email account - this will help you identify the account if you have more than one email service set up on your phone.
- Ensure your name or business name appears in the Your name field. This is how your name appears to others when they receive email from you.
- Once your settings are correct, click Finish setup to complete the wizard.
![]() |

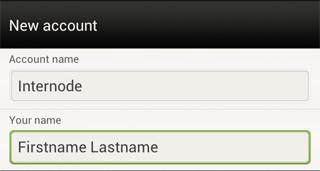

Figure 5: Entering your name or business name |
Congratulations! Your HTC Android phone is now configured for email.
Further Assistance
If you are having trouble setting up email or would like to clarify some of the steps, please contact our Support Team.
