How to set up TP-Link Archer VR900 for NBN FTTB/N


Please follow the steps below to set up your TP-Link Archer VR900.

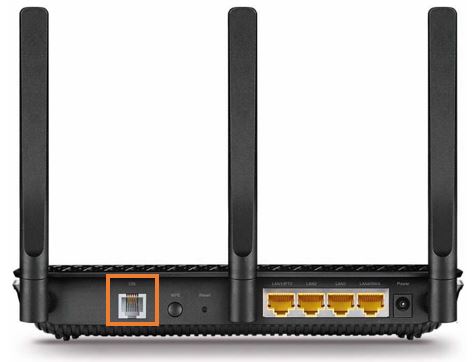

  1. Plug a phone cable from your telephone wall socket into the grey DSL port on your TP-Link router.


  2. Plug in the power cable and turn your TP-Link on using the Power button on the side.


  3. Connect a device to your TP-Link via WiFi or Ethernet cable and go to in your browser.
  4. Log in with your TP-Link username and password.
  5. Select Basic then select Internet.
  6. Select Other for ISP List.
  7. Select VDSL for Modulation.
  8. If your NBN plan was activated before 1 March 2023, more settings are needed. Tick the Enable checkbox for VLAN ID and enter 2.
  9. Select PPPoE as Internet Connection Type.
  10. Enter your Internode Username and Password.
  11. Click Save.


Your TP-Link Archer VR900 should now be online. If you're still having issues, please see NBN Co’s Steps to boost your WiFi or call us on 13 66 33 for further assistance.
