This guide is designed to assist customers to configure their OPEN Networks 812L Analog Telephone Adapter for use with the Internode NodePhone service.

When to use this guide

Please note that all OPEN Networks equipment sold by Internode is pre-configured. Hence in most cases, you should simply need to follow the connection process (step 1).

The rest of this guide may be useful when:

• you have performed a factory reset, and hence need to completely reconfigure the device (steps 2 to 4);
• you have purchased the device from someone else, and hence need the supported Internode configuration (steps 2 to 4); or
• you wish to update the firmware or change the NodePhone configuration - for example, so that all outbound calls are made via NodePhone in the case of Naked ADSL2+ services (step 2 to 4).

Step 1 : Connecting the OPEN Networks 812L

1. Insert the supplied Ethernet cable into the Ethernet port next to the power plug on the OPEN Networks 812L, and connect the other end to a spare Ethernet port on your ADSL router.
2. Connect the supplied power adapter to the OPEN Networks 812L, and to a 240V AC power point.
3. Connect the supplied telephone cable to the Local Phone port on your ADSL Line Filter, and connect the other end to the Line port on the OPEN Networks 812L.
4. Connect your telephone handset to the Phone 1 port on the OPEN Networks 812L.
5. You should now have a complete system, correctly plugged in. The figure below shows what a typical system might look like.

Step 2 : Log in to your OPEN Networks 812L

2.1 Obtaining the IP address

Your ADSL router will automatically assign an IP address to the OPEN Networks 812L. This is a broad overview based on common methods to obtain this IP address:

1. Open a web browser on your computer.
2. Log into your ADSL router as per the router user guide.
3. In most routers your will find a section titled DHCP under Status. For example, if you have an OPEN Networks 624 or 625 series router, click on the Status tab, then click on DHCP Clients. This will present a list of IP address, including the OPEN Networks 812L - note this IP address.

2.2 Log into your OPEN Networks 812L

1. Open a web browser on your computer.
2. Enter the IP address that you obtained in Step 2.1 into the address bar.
3. You will be prompted for a username/password. By default, it is username: root password: 0P3N ("zero, capital P, three, capital N").

Step 3 : Updating your firmware

If you need to update your firmware - including if you wish to use a 'VoIP Only' configuration on Naked ADSL2+ services - please follow the instructions here to download the required formware file, and then return to this guide.

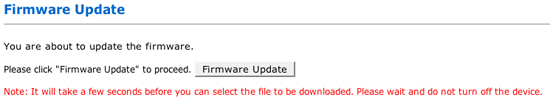

3.1 Firmware Update menu

Locate the Firmware Update menu under Advanced then Firmware Update. Click on the Firmware Update button to start the update preparation.

3.2 Firmware Update preparation

Update preparation takes around 30-60 seconds to erase the flash.

3.3 Locate firmware update file

Click Browse, select the firmware file that you downloaded, then Upload.

Note - you will not receive any feedback from the unit after clicking upload until it has finished writing the new firmware to the flash. Do not reboot the unit during this time.

3.4 Update complete - rebooting

After the new firmware has been written, the unit will reboot itself.

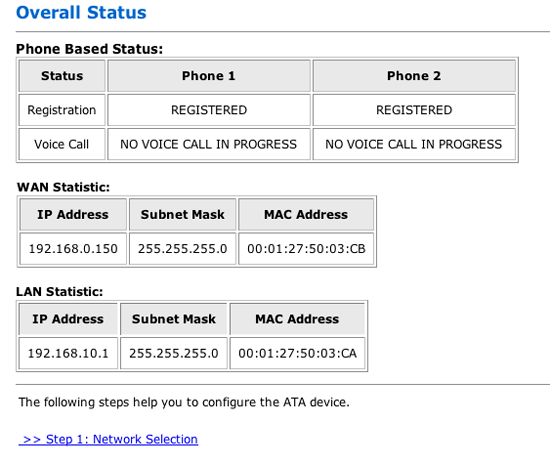

3.5 Firmware Update complete

After the unit reboots, you will be returned to the status page. You can now follow Step 4, to enter/confirm your specific settings.

Step 4 : Configuring your OPEN Networks 812L

4.1 Network Selection

On the bottom of the page, click >> Step 1: Network Selection

4.2 Proceed

Click Proceed to Step 2 (The current default settings are generally suitable).

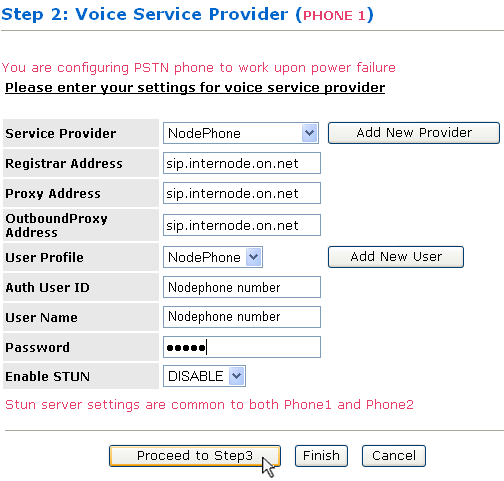

4.3 Enter your NodePhone Details

Enter your NodePhone details:

• In the Auth User ID and User Name fields, enter your NodePhone number eg. 0871270182
• In the Password field, enter your NodePhone password, then click Proceed to Step3

4.4 Finish

Simply click Finish

4.5 Save and Reboot

The Save-Reboot process may take a few minutes.

Job Done!

Once the above steps are completed, simply Log off and/or close your browser.

Congratulations! The OPEN Networks 812L connection should automatically connect in a few minutes. You can test the phone service by dialing the numbers listed below:

08 7127 1201	Echo Test (plays your own voice back to you)
08 7127 1202	Music (plays 10 Minutes of Radio Paradise)
08 7127 1203	Call Line ID Presentation Check (reads back your CLID to you, if it's turned on)
08 7127 1204	Talking Clock (reads back the current time to you)

You may need to reboot your modem and your OPEN Networks 812L.

Basic troubleshooting information can be found NodePhone FAQ page.

If you are having trouble or would like to clarify some of the steps, please contact the Internode helpdesk.
