Wireless Configuration for Billion 7800N Routers
This guide is suitable for Billion 7800N routers.
What we'll cover:
- logging into your router
- turning your router's wireless settings on (or off)
- securing your wireless network so only people you allow may connect
Not what you're looking for? Try the ADSL Setup Guide or the Fetch TV Setup Guide.
You will need to connect your computer to your Billion 7800N router with an Ethernet cable to complete the wireless setup.
Logging into the Billion 7800N router
Step 1
- Ensure that your computer is connected to your Billion 7800N with an Ethernet cable.
- Open your preferred web browser, e.g., Internet Explorer, Mozilla Firefox, etc.
- Enter the following number into the address bar and then hit Enteron your keyboard:
- 192.168.1.254 (this is known as an IP Address)
 |
|
Figure 1: Entering the IP address to access the router |
Step 2
- The modem Log In page will open. You will be prompted for a username and password.
| Username: | admin |
|---|---|
| Password: | admin |
| This is the router's default username and password. We recommend that you change the password for security reasons. |
|
- Click OK to log in to the router.
Configuring your Wireless Connection
Step 1
- Log in to the router as per the instructions above.
- Click WLAN from the menu to the left of the screen. If you do not see WLAN, click Basic to change the menu options.
 |
|
Figure 2: The Billion 7800N Status Page |
Step 2
- The Wireless Configuration page will be displayed.
- Ensure that WLAN Service is set to Enable.
- Create a name for your wireless network and enter this into the field labelled ESSID.
Creating a network name (SSID)
Your network name is used to identify your wireless network. This is particularly useful if there are other wireless networks nearby.
Because your network name will be visible outside of your home or office, the name should be recognisable but should not use any personal or service details.
- Bad Network Names:
BloggsFamily, JoeBloggs, 123JamesStreet, Internode, default, your Internode username, your router's name/brand. - Good Network Names:
MyNetwork, HomeWireless, Homestead, Cookie Monster (be creative!)
Step 3
- Set the Security Mode to WPA2. Further options will appear underneath.
- Create a password that will be used to access your wireless network. This needs to be entered next to WPA Shared Key.
Creating a Pre-shared Key (Wireless Password)
A Pre-shared key prevents people you don't know from accessing your wireless network. When you connect your computers to your wireless network, you will be asked for the pre-shared key. If someone tries to connect without the pre-shared key, they will be unable to connect.
Your pre-shared key:
- must have a minimum of 8 alphanumeric characters (the longer the better)
- is case sensitive
- should never be the same as your Internode password - or any password you currently use!
We recommend you create a complex password for your pre-shared key.
- Once you have entered a password (pre-shared key), click Apply.
 |
|

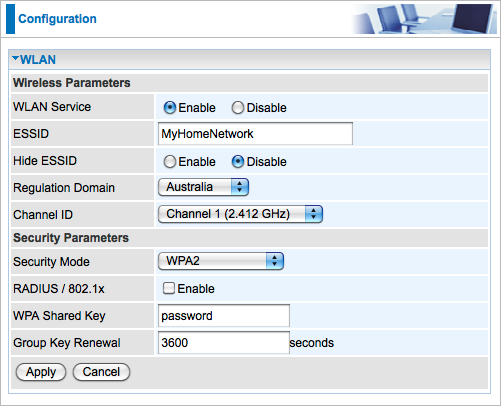

Figure 3: The Billion 7800N Wireless Configuration Page |
Step 4
- To save your wireless network settings, click Save Config at the bottom right of the screen.
- The modem will display the Save Config to FLASH screen. Click Apply to save your settings.
 |
|
Figure 4: Saving your settings to the Billion 7800N |
Saving the configuration can take up to 20 seconds, once the configuration has been saved another box may pop up confirming that the save is complete. The page may then return to the 'Save Settings' page or to the 'Status' page.
Congratulations! You have successfully configured the wireless settings on your Billion 7800N router.
To connect your computer to the network, please refer to the following guides:
- Connecting a Windows computer to a wireless network
- Connecting a Macintosh computer to a wireless network
Further Assistance
If you are looking to set up your Internet or Fetch TV service for your Billion 7800N router, please refer to the following setup guides:
If you are having trouble setting up your router or would like to clarify some of the steps, please contact our Support Team.
