Home - Support - Guides - Internet Access - NBN - HFC - AVM FRITZ!Box

Online Guides

FRITZ!Box Setup for NBN HFC

This guide is suitable for FRITZ!Box 7490 and 7390 routers using the latest FRITZ!OS firmware.

What you haveWhat you need to do
A new Internode Fritz!Box for a new broadband service Just follow the plugin guide below to get online. Your modem is pre-configured with your username, password and other settings.
An existing Internode Fritz!Box that you need to set up again Follow the plugin guide and the manual configuration guide to get online.

FRITZ!Box Plugin for NBN HFC

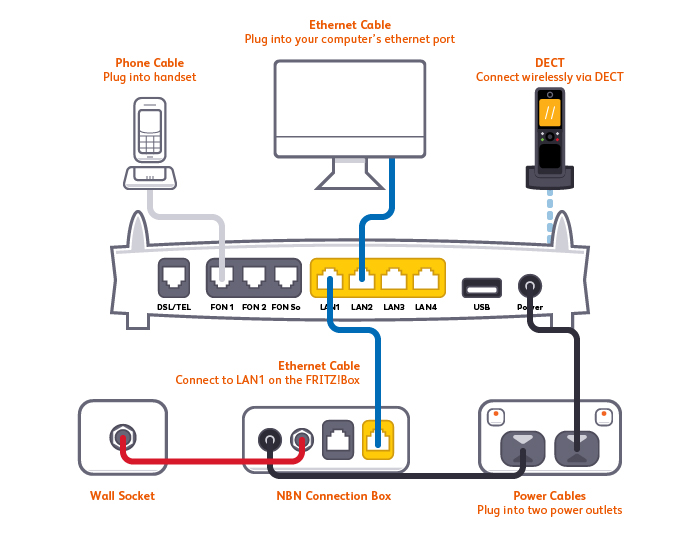

FritzBox NBN HFC plugin diagram



  1. Using the supplied Ethernet cable, connect the modem’s yellow LAN 1 port to the yellow UNI-D1 port on your NBN Network Termination Device (NTD).
    Note: Older NTD models may have a yellow LAN port instead of a UNI-D1 port.
  2. Make sure that your NTD is connected to an electrical outlet that is switched on.
  3. Using an additional Ethernet cable, connect a computer to one of the yellow LAN ports. Alternatively, you can connect devices via WiFi. The default WiFi password (WLAN key) can be found on the Fritz!Box’s barcode sticker.
  4. Using the supplied power cable, connect the Fritz!Box’s Power port to an electrical outlet and switch it on.

FRITZ!Box Manual Configuration for NBN HFC

  1. On a device that's connected to your Fritz!Box via Ethernet or WiFi, open your web browser and go to http://192.168.178.1
  2. On the Welcome screen, click Cancel > Exit Wizard to exit the Setup Wizard.
  3. Select Internet, then click Account Information.
  4. At the top of the page, under "Internet Service Provider", select Other Internet service provider and enter "Internode" as the Name.
Fritz!Box ISP settings
  1. Under "Connection", select External modem or router.
Fritz!Box connection settings
  1. Under "Operating Mode", select Establish own connection to the internet.
Fritz!Box operating mode settings
  1. Under "Account information", make sure that Is account information required? is set to Yes.

  2. Enter your Internode username (must include "@internode.on.net") and password.
    Note: If you've forgotten your Internode password, please use our Password Reset tool.
Fritz!Box Internode credentials entry
  1. Under "Data Throughput", enter the Downstream and Upstream speeds for your NBN plan as per the reference table below. Note: If you're not sure which NBN plan you have, please check your order confirmation.
Service SpeedDownstream (mbit/s)Upstream (mbit/s)Downstream (kbit/s)Upstream (kbit/s)
NBN12 12 1 12000 1000
NBN25 25 5 25000 5000
NBN50 50 20 50000 20000
NBN100 100 40 100000 40000



Fritz!Box NBN speed entry

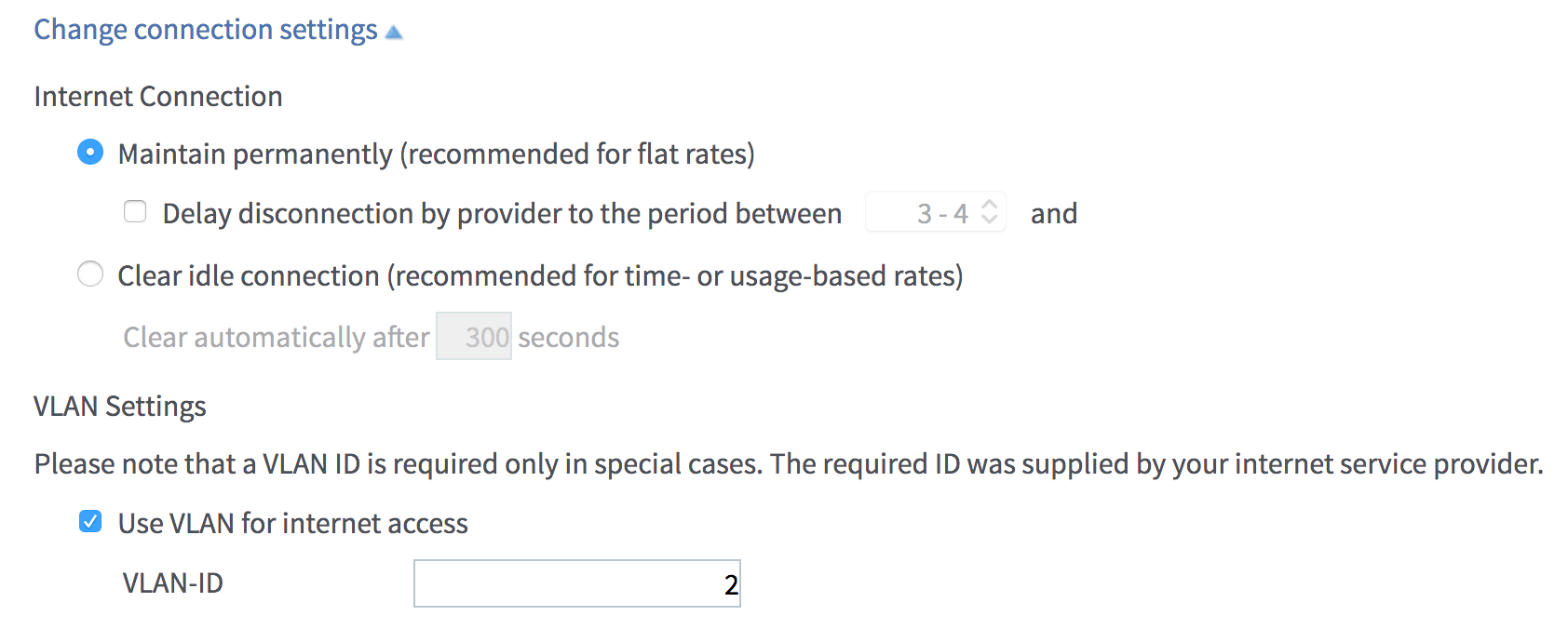

  1. Click Change connection settings beneath the downstream/upstream entry and select Maintain permanently (recommended for flat rates).
  2. Under "VLAN settings", tick Use and enter "2 " for VLAN-ID.
 Fritz!Box Connection and VLAN settings
  1. Click Apply to save your settings. To finish up, click OK to proceed through any configuration notices or connection tests.

You should now be able to get online with your NBN service. If you can't get online, please contact our Support Team.

Further Assistance

If you're looking to also set up your NodePhone VoIP or Wireless service, please refer to our other guides:

  • WiFi configuration

  • NodePhone VoIP configuration (not available for data-only NBN services)

If you are having trouble setting up your router, or would like to clarify some of the steps, please contact our Support Team.

  • AVM International: VPN Overview

  • AVM International: FRITZ!Box 7490 Support Overview

Please note that our Support Team cannot provide assistance with VPNs, Port Forwarding, or other advanced features.
