Set up VX220-G2V Modem for NBN FTTB/N

Follow the instructions below to set up your Internode NBN FTTB/N.

First, ensure you have:

  • A message from us advising you to plug in your NBN modem.
  • An electrical outlet near your telephone wall socket.
  • A phone cable.
  • (Optional) Up to 4 Ethernet cables to connect devices via Ethernet.
  1. Connect the power cable from your modem's Power port to an electrical outlet.
  2. Connect a phone cable from the grey DSL port on your modem to your telephone wall socket.
  3. Make sure the electrical outlet for your modem is on, and press the modem's ON/OFF button.
  4. Allow 15 minutes for your modem to boot up and connect automatically.
  5. Check the lights on your modem. If the Internet light is blue, you can start connecting your devices and getting online.

vx220g2v_LED_DSL

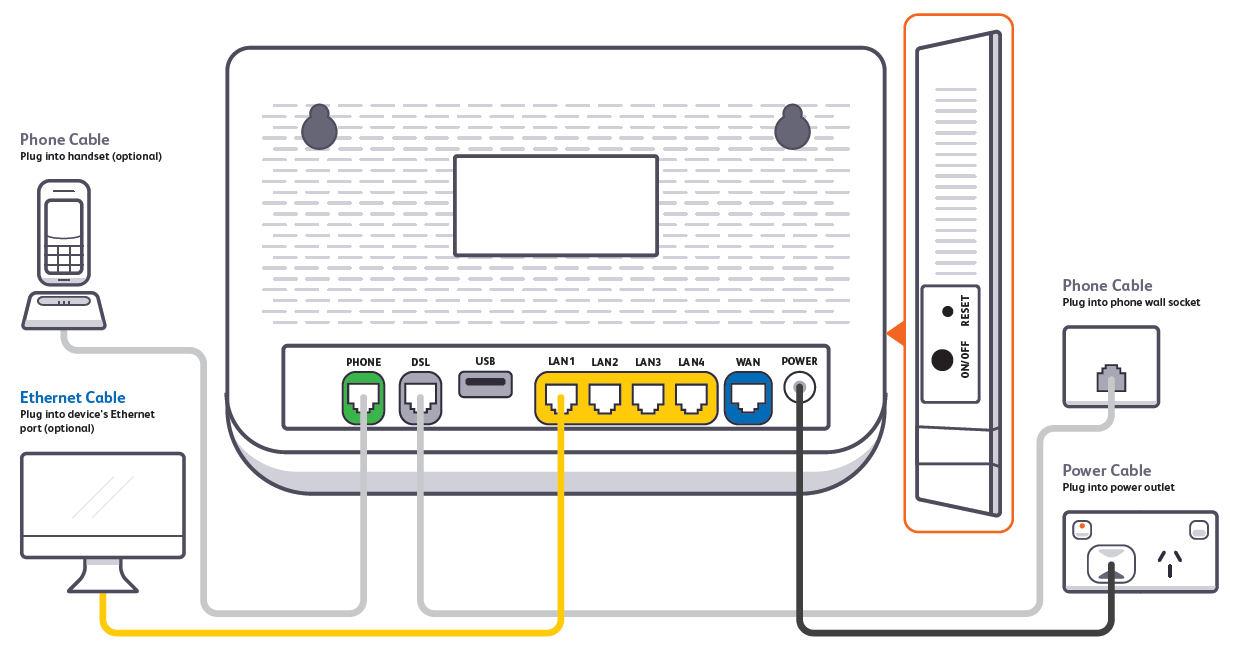

  1. To plug in additional devices via Ethernet cable, simply connect the Ethernet cables to any of the four yellow LAN ports on your modem.
  2. If you wish to use your Internode NBN Phone service, plug a compatible handset into the green PHONE port on your modem.

vx220g2v_NBNFTTBN_plugin

  1. If you wish to connect your devices via WiFi, you'll find the WiFi name (SSID) and password on the modem's barcode sticker.

vx220g2v_BARCODEwifi

Your modem will automatically connect your devices to the best WiFi network possible (i.e. 5GHz). Older devices may only be able to connect to the slower 2.4GHz WiFi. See Improving WiFi Signal.
